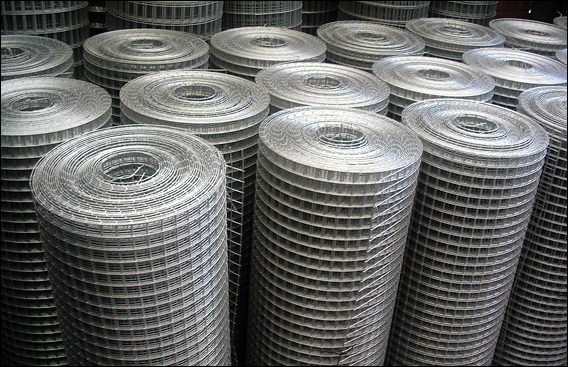

SS Square Mesh, Type SS316L Material
Welded s/s wire mesh or hardware cloth, SS316L Grade
Wire: 1mm
Mesh size: 1" x 1" and 1/3" x 1/3", in 1.8m width x 100 m length rolls.

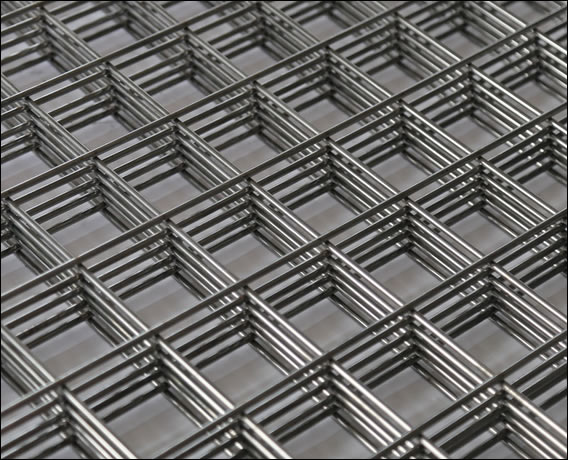

Stainless Steel Mesh Welded in Square Hole

Stainless Steel Mesh,Welded in Square Holes 1 inch

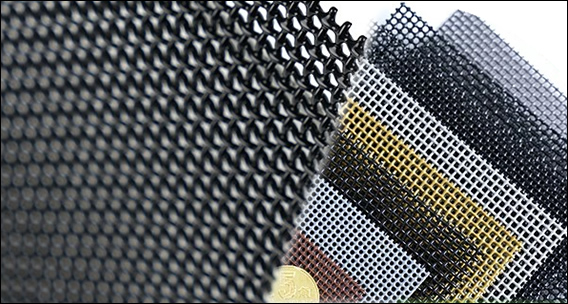

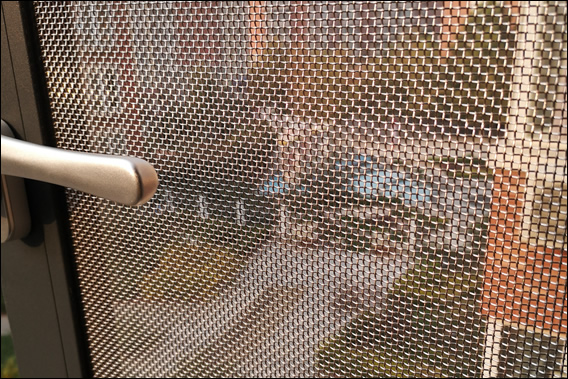

Square Hole Stainless steel mesh for mosquito insect netting screen

Fire retardant security window screening

Mine screening stainless steel hardware mesh

Stainless Steel Hardware Cloth

SS hardware cloth, also known as Stainless Steel Wire Mesh, can be welded or woven. Used for construction, insect screen and industrial filters. Micro hole woven ss mesh is mainly used as filter wire cloth.

BASIC INFORMATION

Material: SUS304, 316, 316L.
Color: Silver

Basic Specification:

Mesh Aperture (inch)	Mesh Aperture (mm)	Wire Gauge (BWG)
1/4" x 1/4"	6.4 x 6.4	22,23,24
3/8" x 3/8"	10.6 x 10.6	19,20,21,22
1/2" x 1/2"	12.7 x 12.7	16,17,18,19,20,21,22,23
5/8" x 5/8"	16 x 16	18,19,20,21,
3/4" x 3/4"	19.1 x 19.1	16,17,18,19,20,21
1" x 1/2"	25.4 x 12.7	16,17,18,19,20,21
1-1/2" x 1-1/2"	38 x 38	14,15,16,17,18,19
1" x 2"	25.4 x 50.8	14,15,16
2" x 2"	50.8 x 50.8	12,13,14,15,16pro

Custom Service Available
Available in rolls, panels, cut pieces or strips.
Can be supplied in custom stainless steel mesh panels cut to certain length
Samples of cut strips or pieces provided for most products.

PRODUCTS MANUFACTURED AND SUPPLIED

S/S Hardware Cloth, Welded;
Welded s/s wire mesh or hardware cloth 36"x50' roll for architectural venting and fencing;
Stainless steel 19 gauge hardware cloth 3 foot by 100 foot roll;
Stainless Steel Hardware Cloth ½" x1" in 2' x 100' roll;
304 stainless steel 1/4" x 1/4" hardware cloth, roll width of 24" and 48" x 100' long;
Stainless steel cloth, 16 gauge 1/2 inch x 1/2 inch hardware cloth;
Stainless steel hardware cloth, hardware cloth with 1/2" and 1/4" square openings rolls or specifically cut pieces between 24"-36" wide, to USA;
48" X 100' roll of stainless steel mesh/hardware cloth with 0.275" X 0.297" squares, 48" X 100' ditto 0.054" X 0.080" squares;
Stainless Hardware cloth with 1/8 inch opening, cut in strips

STAINLESS STEEL MESH SPECIFICATIONS

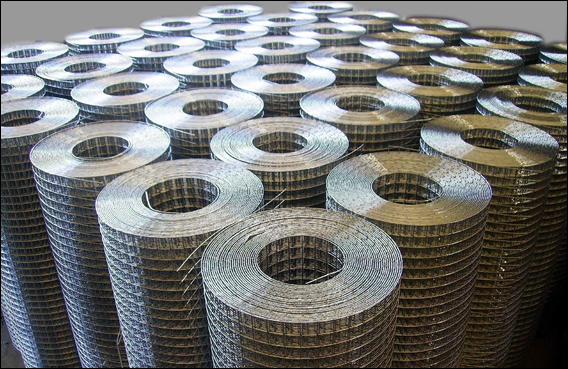

Rolls:

Mesh Size	Wire Diameter	Width	Length
¼” x ¼”	21swg (0.80 mm)	48”	30.0 mtrs
½” x ½”	19swg (1.00 mm)	48”	30.0 mtrs
½” x ½”	16swg (1.60 mm)	48”	30.0 mtrs
1” x 1”	16swg (1.60 mm)	48”	30.0 mtrs

Panels:

Mesh Size	Wire Diameter	Width	Length
1” x 1”	2.50 mm	48”	96”
1” x 1”	3.00 mm	48”	96”
2” x 2”	2.50 mm	48”	96”
2” x 2”	3.00 mm	48”	96”
3” x ½”	3.00 mm	48”	96”
3” x ½”	2.50 mm	48”	96”

All mesh sizes are centre of wire to centre of wire.
All roll items are to be wrapped in tar paper and supplied in wooden crates.
All panel items are to be packed onto wooden pallets (100 per pallet) and wrapped in plastic wrap/sheeting.

APPLICATION

Stainless Steel Wire Mesh ( Welded Mesh ) , Used as Building Material
Welded Stainless Steel Reinforcing Mesh Panels for Construction
SS Wire Mesh, Material of construction SS316L - for building induced draught cooling tower for a vallur thermal powder project:

Specification and Structure:

Detail per drawing in pdf

SS Wire Mesh:
2.5 mm Dia Horizontal Wire : Spacing 200 mm
3 mm Dia Vertical Wire: Spacing 100 mm
Opening: Rectangular
Free Wire above weld mesh Panel – 1700 mm
Panel width: 1200mm
Panel height: 5400
Material of Construction :
Wire : SS 316L
Quality conforming to relevant ASTM/BS/IS codes
Panel sizes and numbers for cooling tower construction, in attached PDF.

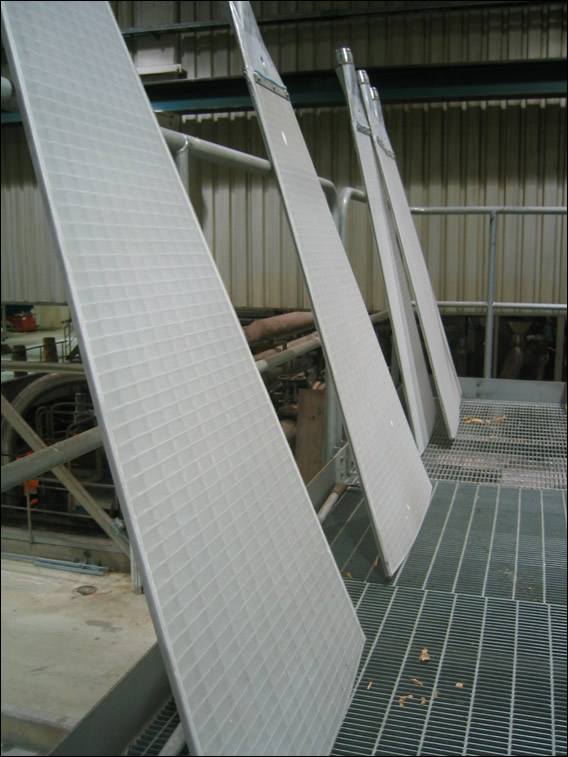

Acid Proof Welded Mesh Panels, Type AISI316 Grade Stainless Steel, for Filtration
Material: AISI316 acid proof stainless steel.
For construction of filter elements.
Details according to PDF drawing

Welded Mesh Filter Sheets
