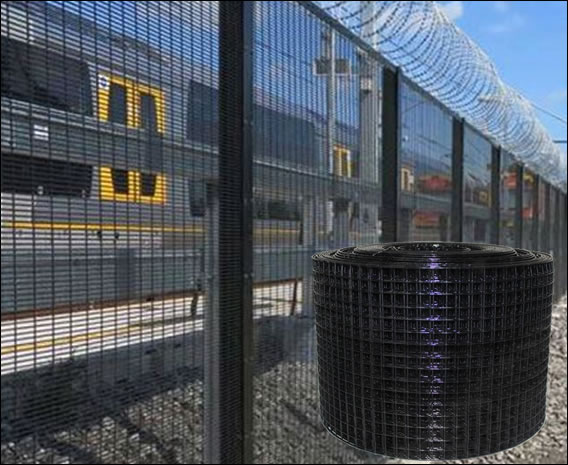

1/4 inch x1/4 inch Pvc Coated Hardware Cloth ( Black)
Black plastic-coated galvanized after welded mesh, fencing panels

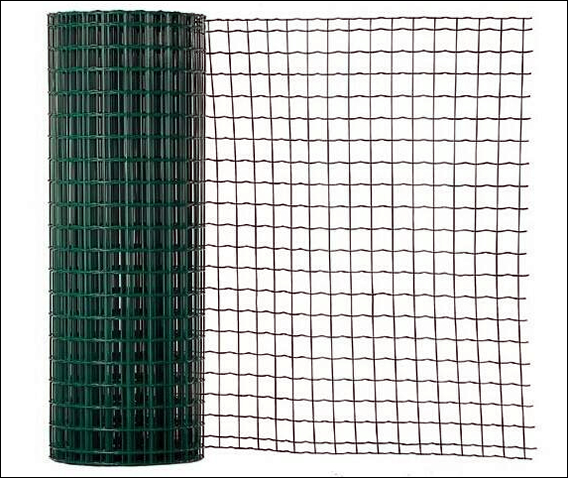

1/2" x 1/2" PVC Coated Hardware Cloth, Green PVC Coated
Dark green pvc coated welded wire mesh, 1/2" x 1/2" square hole




1" X 1" PVC Coated Welded Mesh Hardware Cloth, Square Opening
Hot dipped mesh then pvc coated, in mesh: 1 inch x 1 inch square opening, wire: crimped / curved wave wire, 48" width x 13' length rolls



Durable White Coated Welded Wire Fencing Hardware Cloth

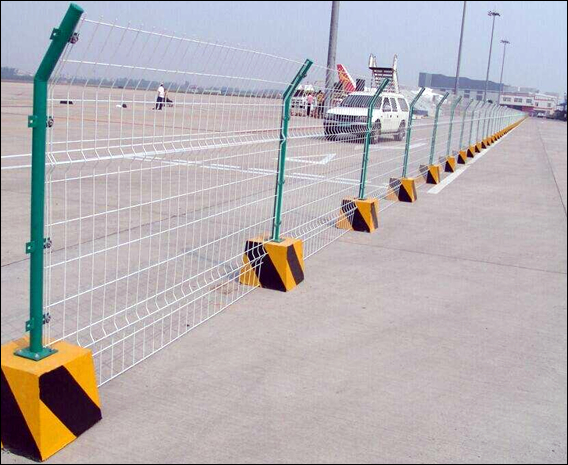

PVC white coated temp mobile fencing, 2 inch x 4 inch, white color pvc dipping, with Green coated steel posts


8 Mesh PVC Coated Galvanized Hardware Cloth
Galvanised Wire Cloth in 27gauge, 1/8 inch mesh, for USA

Green PVC Dip Hardware Cloth

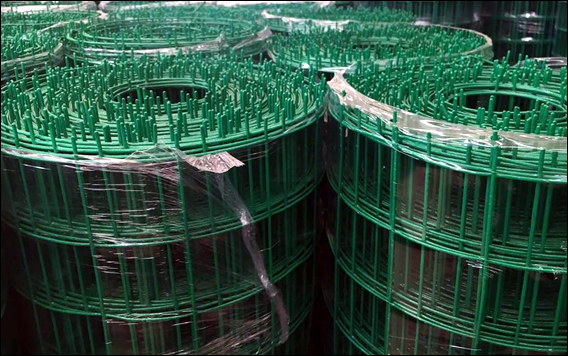

Hot Dipped Galvanized PVC Coated Welded Mesh Fence, Green Garden Fence

Galvanized Hardware Cloth Coated with PVC / Plastic / Viny or Poly Powder

Also known as plastic coated wire mesh, coated hardware cloth



BASIC INFORMATION

Mesh material: Low carbon steel wire Q195;

Coating material: plastic / pvc, vinyl, poly powder
Processing mode: welded;
PVC coated colors: dark green, light green, blue, yellow, white, black, orange and red, etc.
Classification:
Black wire welded mesh + powder coated / dipped;
Galvanized welded mesh + powder coated / dipped;
Hot dipped galvanized welded mesh + powder coated /dipped.
Application:Mainly used in building and kinds of fencing.



PRODUCTS MANUFACTURED AND SUPPLIED

Common specifications

Mesh : 4"x2", 3"x2", 1"x1", 1"x2", etc.
wire dia: 14ga,16ga, 12.5ga.
roll size : 2',3',4',5',6'x50'/100',etc.
finish: galvanized , pvc coated.
packing: water-proof paper with label.

Common applications:

Poultry and small animals fencing; lawn & garden fencing; pet fencing; animal cages; tree guards; border security and temp fencing.

PVC  COATED  WELDED  MESH COMMON SIZES
Mesh Size Wire Diameter (In mm) Rolls: Width & Length
In Inch In MM Before coating After coating Width: 0.5m-2.0m.
Length: 25m, 30m.
Other sizes can be made as request.
1/2" 12.7mm 0.45mm - 1.6mm 0.85mm - 2.1mm
3/4" 19.05mm 0.45mm - 1.6mm 0.85mm - 2.1mm
1" 25.4mm 0.88mm - 2.1mm 1.35mm - 2.6mm
2" 50.8mm 1.0mm - 1.82mm 1.45mm - 2.4mm
2" x 4" 50.8 x 101.6mm 1.24mm - 1.82mm 1.7mm - 2.4mm
1/4" 6.35mm 0.56mm - 0.88mm 1.0mm - 1.4mm
3/8" 9.52mm 0.457mm - 1.06mm 0.91mm - 1.6mm
5/8" 16mm 0.457mm - 1.4mm 0.91mm - 2.0mm
Note: pvc thickness can be adjusted

HuaHai Hardware Cloth Factory


HuaHai makes hardware cloth for
worldwide users
we export industrial wire cloth products to USA, Europe, Australia and other countries, our products are for fencing, building, screening, filtering and various industrial uses.
